Specification
|
Fan Type |

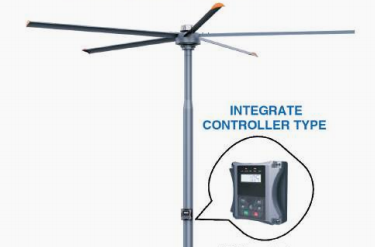

Floor-Mounted Pole HVLS Fan |
|
Airflow |
240,000 CMH / 140,000 CFM |
|
Area Coverage Sq. Ft (upto) |
3500 |
|
Pressure (Pa) |
21 |
|
Power (Kw) |
0.37 |
|
V/PH/Hz |
220/1/50 |
|
Rated Current(A) |
7.2 |
|
Fan Type |
Axial |
|
Fan Diameter (mm) |
1000 |
|
Fan Speed |
Multi |
|
Fan Rotation |
20-120 rpm |
|
Motor Type |
Permanent Magnet Synchronous Motor |
|
Fan Blade Fins |
5 |
|
Ingress Protection |
IP65 |
|
Air Velocity (m/s) |
4 |
|
Net Weight(kg) |
156 |
|
Body Material |
Treated MS |
|
Fan Blade Material |
Aluminium-Magnesium Alloy |
|
Color |
Grey |
|
Controller |
On/Off with Variable Speed |
|
Group Control |
Optional |
|
Drive |
Direct |
|
Noise(dBA) |
≤45 |
|
Life Expectancy |
20 Years |
|
Standard Warranty (onsite) |
1 Year |
|
Extended Warranty (RMA-Based) |
4 Years |
