Discharge

Side

Airflow

50,000 CMH / 26,500 CFM

Pressure (Pa)

100

Power (Kw)

1.2

V/PH/Hz

415/3/50

Rated Current(A)

2.8

Fan Type

Axial

Fan Diameter (inch)

50

Fan Speed

1 Speed

Fan Rotation

460 rpm

Motor Type

AC Induction

Vent Size (Dia) (inch)

50

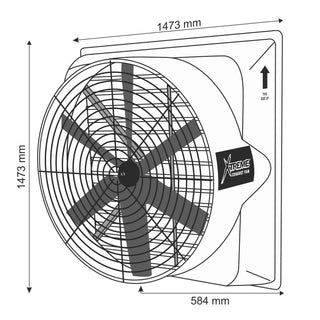

Dimension (LxWxH) (inch)

58x23x58

Fan Blade Fins

6

Net Weight(kg)

58

Body Material

SMC

Fan Blade Material

SMC

Bird Mesh

Coated Iron Grill

Louvers

PVC

Controller

Optional

Group Control

Optional

Drive

Direct

Noise(dBA)

≤65
